C Series - Dual-window Scale Adjustable (Click) Torque Wrench

C Series - Dual-window Scale Adjustable (Click) Torque Wrench

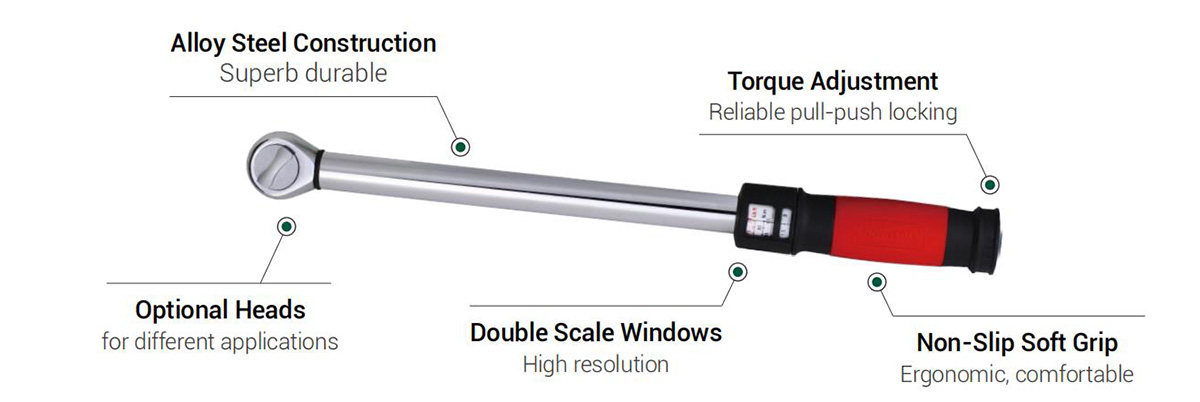

● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.

● Unique dual-window scale for clear readings.

● Main scale with 1/20 unit resolution for high-precision adjustments.

● Dual-unit scales (Metric & English) for versatile measurements.

● Push-pull end cap to secure the set torque value from accidental change.

● Ergonomic non-slip soft grip reduces fatigue during prolonged use.

● Heads designed for various applications:

- CM/C model: Reversible ratchet head for both clockwise and counterclockwise operation.

- CMH/CH model: Rectangular shank head holder compatible with 9x12, 14x18, 24x32, 27x36mm inserts.

- CMR model: Round head holder compatible with Ø16, Ø22mm inserts.

Application for customization Contact Now

C Series - Dual-window Scale Adjustable (Click) Torque Wrench

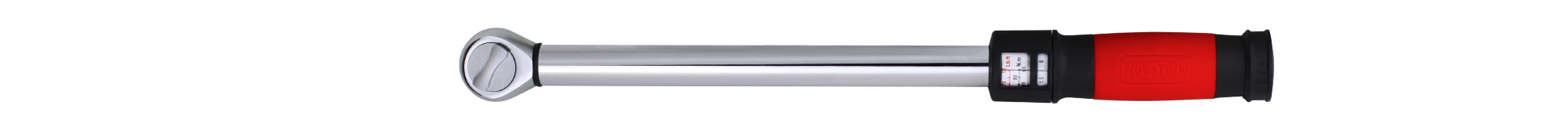

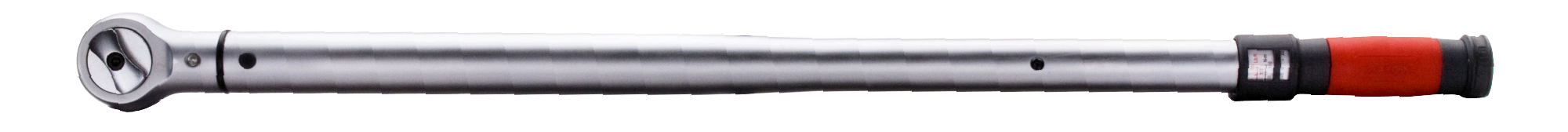

CM

Reversable Ratchet Head Torque Wrench

Bidirectional operation

CM Reversable Ratchet Head Torque Wrench

CM Reversable Ratchet Head Torque Wrench

（Metric Unit）

Item No.	Square Drive	Torque Range		Increment	Length	Width	Weight
Item No.	Square Drive	N.m	Lb.ft	N.m	mm	mm	kg
CM1012	1/4"	2.5-12	20-105*	0.025	285	38	0.54
CM1020	1/4"	4.0-20	30-180*	0.05	285	38	0.54
CM2030	3/8"	6.0-30	50-250*	0.075	313	38	0.68
CM3030	1/2"	6.0-30	50-250*	0.075	313	38	0.68
CM2060	3/8"	10-60	9-45	0.25	383	38	0.82
CM3060	1/2"	10-60	9-45	0.25	383	38	0.82
CM2100	3/8"	20-100	15-75	0.25	438	38	0.9
CM3100	1/2"	20-100	15-75	0.25	438	38	0.9
CM2125	3/8"	25-125	20-90	0.25	438	38	0.9
CM3125	1/2"	25-125	20-90	0.25	438	38	0.9
CM3200	1/2"	40-200	30-150	0.5	463	40	1.02
CM3335	1/2"	65-335	50-250	0.75	523	40	1.16
CM3400	1/2"	80-400	60-300	2	700	40	1.65
CM4335	3/4"	65-335	50-250	0.75	523	40	1.2
CM4500	3/4"	100-500	80-400	1.25	840	60	4.04
CM4800	3/4"	160-800	120-600	2	1040	60	4.93
CM5800	1"	160-800	120-600	2	1040	60	4.93
CM41000	3/4"	200-1000	150-750	2.5	1040	60	4.93
CM51000	1"	200-1000	150-750	2.5	1040	60	4.93
CM51500	1"	300-1500	200-1100	3	1250	75	8.2
CM52000	1"	400-2000	300-1500	5	1250	75	8.2
CM53000	1"	600-3000	400-2200	7.5	1250	75	9.5
CM3200L	1/2"	40-200	30-150	0.5	525	40	1.14
CM3335L	1/2"	65-335	50-250	0.75	700	40	1.95
CM4335L	3/4"	65-335	50-250	0.75	700	40	2
CM3100S	1/2"	20-100	15-75	0.25	360	38	0.74
CM4400S	3/4"	80-400	60-300	1	700	57	2.58
CM4500S	3/4"	100-500	80-400	1.25	700	57	2.6

*Unit is Lb.in; L is extended length version; S is shortened length version.

C Model (English Unit)

Item No.	Square Drive	Torque Range		Increment	Length	Width	Weight
Item No.	Square Drive	Lb.ft	N.m	Lb.ft	mm	mm	kg
C1200	1/4"	40-200*	4.0-22	0.50*	273	38	0.58
C2250	3/8"	50-250*	6.0-30	0.50*	314	38	0.68
C2100	3/8"	20-100	25-135	0.25	420	38	0.99
C3100	1/2"	20-100	25-135	0.25	420	38	1
C3150	1/2"	30-150	40-200	0.5	462	40	1.02
C3250	1/2"	50-250	70-340	0.5	525	40	1.16
C4250	3/4"	50-250	70-340	0.5	525	40	1.2
C4400	3/4"	80-400	100-550	1	840	60	4.04
C4600	3/4"	100-600	150-800	1.25	1040	60	4.93
C5600	1"	100-600	150-800	1.25	1040	60	4.93
C3250L	1/2"	50-250	70-340	0.5	700	40	1.95
C4250L	3/4"	50-250	70-340	0.5	700	40	2

*English Unit is Lb.in; L is extended length version

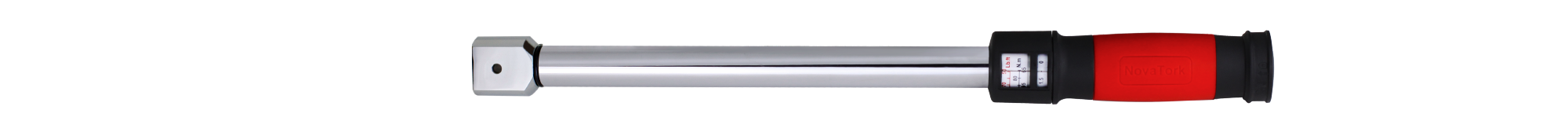

CMH

Rectangular Shank Head Holder Torque Wrench

For rectangular shank head inserts

CMH Rectangular Shank Head Holder Torque Wrench

（Metric Unit）

Item No.	Shank Size	Torque Range		Increment	Length	Width	Weight
Item No.	mm	N.m	Lb.ft	N.m	mm	mm	kg
CMH912	9x12	2.5-12	20-105*	0.025	279	38	0.44
CMH920	9x12	4.0-20	30-180*	0.05	279	38	0.44
CMH930	9x12	6.0-30	50-250*	0.075	298	38	0.58
CMH960	9x12	10-60	9-45	0.25	367	38	0.72
CMH9100	9x12	20-100	15-75	0.25	422	38	0.8
CMH9125	9x12	25-125	20-90	0.25	422	38	0.8
CMH14200	14x18	40-200	30-150	0.5	448.5	38	0.92
CMH14335	14x18	65-335	50-250	0.75	508.5	38	1.1
CMH14400	14x18	80-400	60-300	2	700	35	2.02
CMH24500	24x32	100-500	80-400	1.25	840	56	4.04
CMH24800	24x32	160-800	120-600	2	1040	56	4.93
CMH241000	24x32	200-1000	150-750	2.5	1040	56	4.93
CMH271500	27x36	300-1500	200-1100	3	1250	64	8
CMH272000	27x36	400-2000	300-1500	5	1250	64	8
CMH273000	27x36	600-3000	400-2200	7.5	1250	64	9.3
CMH14335L	14x18	65-335	50-250	0.75	695	38	1.85
CMH24400S	24x28	80-400	60-300	1	700	56	2.6
CMH24500S	24x32	100-500	80-400	1.25	700	56	2.75

*Unit is Lb.in; L is extended length version; S is shortened length version.

CH Model (English Unit)

Item No.	Shank Size	Torque Range		Increment	Length	Width	Weight
Item No.	mm	Lb.ft	N.m	Lb.ft	mm	mm	kg
CH9200	9x12	40-200*	4.0-22	0.50*	260	38	0.44
CH9250	9x12	50-250*	6.0-30	0.50*	295	38	0.58
CH9100	9x12	20-100	25-135	0.25	405	38	0.8
CH14150	14x18	30-150	40-200	0.5	448.5	38	0.92
CH14250	14x18	50-250	70-340	0.5	508.5	38	1.06
CH24400	24x32	80-400	100-550	1	840	56	4.04
CH24600	24x32	100-600	150-800	1.25	1040	56	4.93
CH14250L	14x18	50-250	70-340	0.5	695	38	1.85

*English Unit is Lb.in; L is extended length version

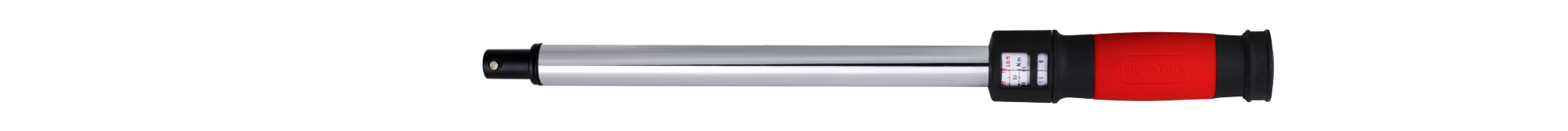

CMR

Round Head Holder Torque Wrench

For round hole inserts

CMR Round Head Holder Torque Wrench

（Metric Unit）

Item No.	Round Hole	Torque Range		Increment	Length	Width	Weight
Item No.	mm	N.m	Lb.ft	N.m	mm	mm	kg
CMR1612	φ16	2.5-12	20-105*	0.025	283	38	0.44
CMR1620	φ16	4.0-20	30-180*	0.05	283	38	0.44
CMR1630	φ16	6.0-30	50-250*	0.075	302	38	0.58
CMR1660	φ16	10-60	9-45	0.25	371	38	0.72
CMR16125	φ16	25-125	20-90	0.25	426	38	0.8
CMR16200	φ16	40-200	30-150	0.5	450	38	0.92
CMR16335	φ16	65-335	50-250	0.75	510	38	1.06
CMR22500	φ22	100-500	80-400	1.25	790	38	3.3
CMR22800	φ22	160-800	120-600	2	990	38	4.2
CMR221000	φ22	200-1000	150-750	2.5	990	38	4.2
CMR16335L	φ16	65-335	50-250	0.75	690	38	1.85

*Unit is Lb.in; L is extended length version
