PC Series - Preset Torque Wrench

PC Series - Preset Torque Wrench

● Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.

● Torque can be precisely adjusted with a torque tester and a dedicated adjusting tool.

● Torque settings are mechanically fixed for field use, eliminating accidental adjustments.

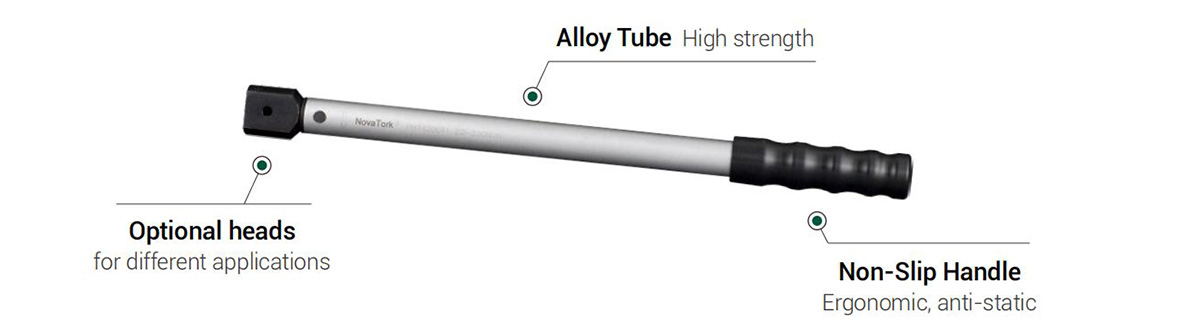

● Heads designed for various applications:

- PC (P C_S mini size) model: Reversible ratchet head for both clockwise and counterclockwise operation.

- PCH (PCH_S mini size) model: Rectangular shank head holder compatible with 9x12, 14x18, 24x32, 27x36mm inserts.

申请定制联系我们

PC Series - Preset Torque Wrench

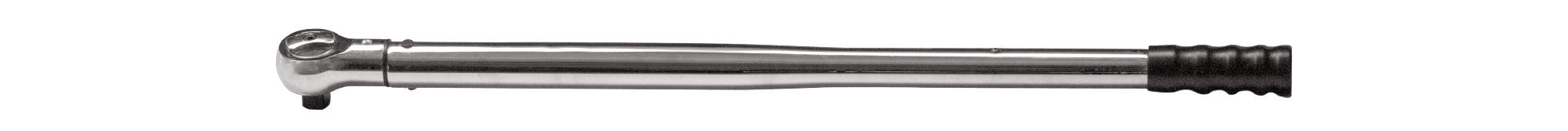

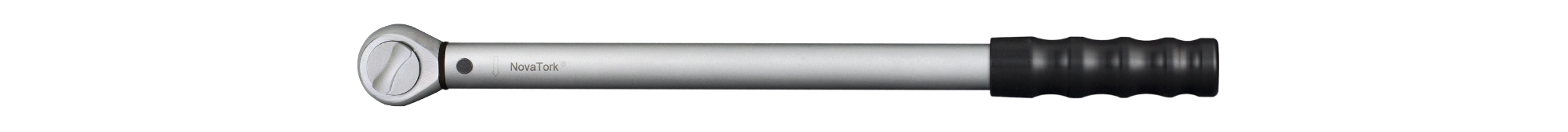

PC

Reversable Ratchet Head Torque Wrench

Bidirectional operation

PC Reversable Ratchet Head Torque Wrench

PC Reversable Ratchet Head Torque Wrench

Item No.	Square Drive	Torque Range		Length	Width	Weight	Adjusting Tool
Item No.	Square Drive	N.m	Lb.ft	mm	mm	kg	Adjusting Tool
PC112	1/4"	2.5-12	20-105*	184	30	0.45	DC.Q6231
PC120	1/4"	4-20	30-180*	184	30	0.45	DC.Q6231
PC230	3/8"	6-30	50-250*	214	37	0.5	DC.Q6231
PC260	3/8"	10-60	9.0-45	255	38	0.56	DC.Q6231
PC2125	3/8"	25-125	20-90	366	38	0.79	DC.Q6231
PC3200	1/2"	40-200	30-150	457	40	1.2	DC.Q6231
PC3340	1/2"	65-340	50-250	691	40	1.96	DC.Q6231
PC4500	3/4"	100-500	80-400	915	57	2.8	DC.Q6231
PC4650	3/4"	150-650	100-500	915	57	2.8	DC.Q6231
PC4800	3/4"	160-800	120-600	1030	60	5	DC.Q6231
PC41000	3/4"	200-1000	150-750	1260	60	6	DC.Q6231
PC51000	1"	200-1000	150-750	1260	60	6	DC.Q6231
PC51500	1"	300-1500	200-1100	1610	60	8	DC.Q6231
PC52000	1"	400-2000	300-1500	1910	60	9.5	DC.Q6231
PC53000	1"	600-3000	400-2200	2010	60	9.9	DC.Q6231
*Unit is Lb.in

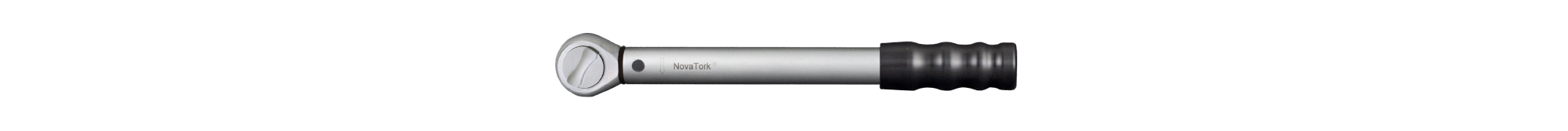

PC_S

Mini size of PC model

PC_S Mini size of PC model

Item No.	Square Drive	Torque Range		Length	Width	Weight	Adjusting Tool
Item No.	Square Drive	N.m	Lb.in	mm	mm	kg	Adjusting Tool
PC15S	1/4"	1-5	10-45	162	29	0.25	DC.Q6230
PC110S	1/4"	2-10	20-90	173	29	0.26	DC.Q6230
PC115S	1/4"	3-15	30-140	183	29	0.28	DC.Q6230

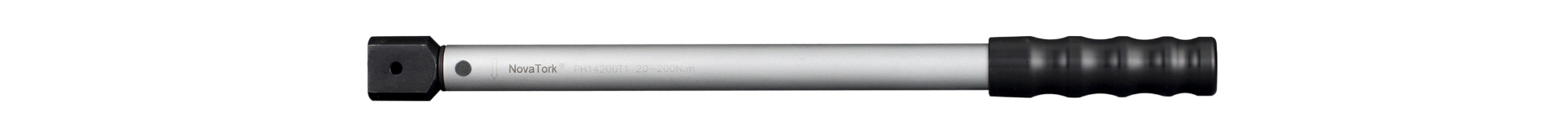

PCH

Rectangular Shank Head Holder Torque Wrench

For rectangular shank head inserts

PCH Rectangular Shank Head Holder Torque Wrench

Item No.	Shank Size	Torque Range		Length	Width	Weight	Adjusting Tool
Item No.	mm	N.m	Lb.ft	mm	mm	kg	Adjusting Tool
PCH920	9X12	4-20	30-180*	155	28	0.24	DC.Q6232
PCH925	9X12	5-25	45-225*	178	28	0.28	DC.Q6232
PCH935	9X12	7-35	60-300*	205	20	0.34	DC.Q6231
PCH950	9X12	10-50	8.0-40	240	28	0.4	DC.Q6232
PCH960	9X12	10-60	9.0-45	240	28	0.4	DC.Q6232
PCH985	9X12	15-85	12-60	310	28	0.51	DC.Q6232
PCH9120	9X12	25-120	20-90	355	28	0.6	DC.Q6232
PCH9180T1	9X12	36-180	26-130	600	22	1.2	DC.Q6231
PCH14200	14X18	40-200	30-150	417.5	32	0.86	DC.Q6231
PCH14300	14X18	50-300	40-225	681.5	32	1.3	DC.Q6231
PCH14340	14X18	60-340	50-250	681.5	32	1.3	DC.Q6231
PCH24500	24X32	100-500	80-400	910	56	2.3	DC.Q6231
PCH24650	24X32	150-650	100-500	1030	56	2.56	DC.Q6231
PCH24800	24X32	160-800	120-600	1030	56	4.8	DC.Q6231
PCH241000	24X32	200-1000	150-750	1260	56	5.7	DC.Q6231
PCH271500	27X36	300-1500	200-1100	1610	64	7.8	DC.Q6231
PCH272000	27X36	400-2000	300-1500	1910	64	9.2	DC.Q6231
PCH273000	27X36	600-3000	400-2200	2010	64	9.6	DC.Q6231
*Unit is Lb.in

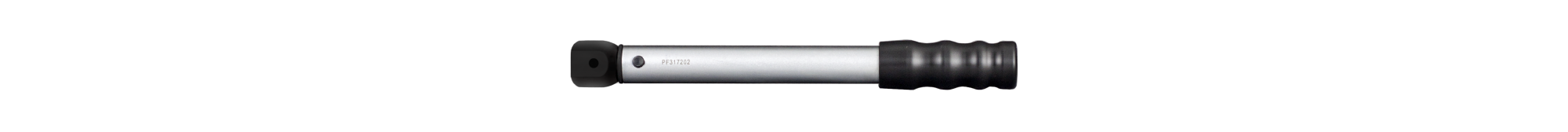

PCH_S

Mini size of PCH model

PCH_S Mini size of PCH model

Item No.	Shank Size	Torque Range		Length	Width	Weight	Adjusting Tool
Item No.	mm	N.m	Lb.in	mm	mm	kg	Adjusting Tool
PCH95S	9X12	1-5	10-45	145	22	0.22	DC.Q6230
PCH910S	9X12	2-10	20-90	155	22	0.23	DC.Q6230
PCH915S	9X12	3-15	30-140	165	22	0.25	DC.Q6230
PCH940S	9X12	8-40	70-350	233	22	0.38	DC.Q6230
