DC Series - Digi-Click Mechanical Torque Wrench
● Accuracy: ±4% of reading in clockwise direction.
● Set torque is displayed on back-lit LCD screen, and the increment is 0.1 of unit.
● Lowest torque value is 10% of capacity.
● 4 Torque units: N.m, Lb.ft, Lb.in, Kg.cm.
● For operators who are used to using mechanical "Click" torque wrenches, the alarm of "Click" is maintained.
● Push-pull end cap to secure the set torque value from accidental change.
● Heads designed for various applications:

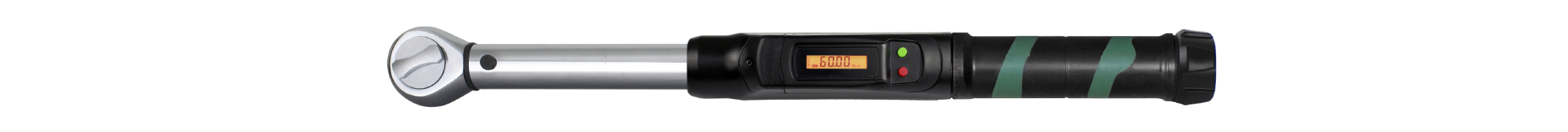

- DCM model: Reversible ratchet head for both clockwise and counterclockwise operation.

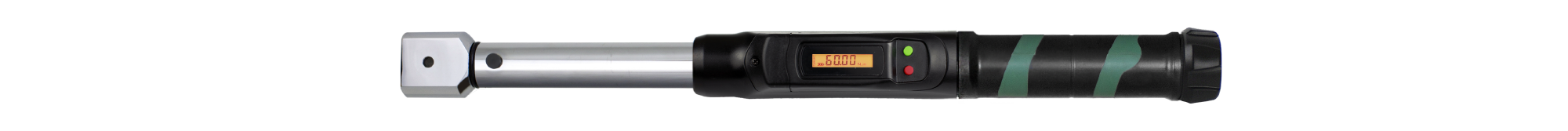

- DCMH model: Rectangular shank head holder compatible with 9x12, 14x18mm inserts.


| Item No. | Square Drive | Torque Range | Increment | Length | Width | Weight | |
| N.m | Lb.ft | N.m | mm | mm | kg | ||
| DCM260 | 3/8" | 6-60 | 4.5-45 | 0.1 | 382 | 41 | 1.3 |
| DCM2100 | 3/8" | 10-100 | 7.4-74 | 0.1 | 450 | 45 | 1.4 |
| DCM3140 | 1/2" | 14-140 | 10.5-105 | 0.1 | 481 | 45 | 1.45 |
| DCM3200 | 1/2" | 20-200 | 14.7-147 | 0.1 | 520 | 45 | 1.6 |
| DCM3300 | 1/2" | 30-300 | 22-220 | 0.1 | 585 | 45 | 1.8 |

| Item No. | Shank Size | Torque Range | Increment | Length | Width | Weight | |
| mm | N.m | Lb.ft | N.m | mm | mm | kg | |
| DCMH960 | 9x12 | 6-60 | 4.5-45 | 0.1 | 408 | 41 | 1.3 |
| DCMH9100 | 9x12 | 10-100 | 7.4-74 | 0.1 | 431 | 41 | 1.4 |
| DCMH14140 | 14x18 | 14-140 | 10.5-105 | 0.1 | 492 | 41 | 1.45 |
| DCMH14200 | 14x18 | 20-200 | 14.7-147 | 0.1 | 510 | 41 | 1.5 |
| DCMH14300 | 14x18 | 30-300 | 22-220 | 0.1 | 568 | 41 | 1.7 |
