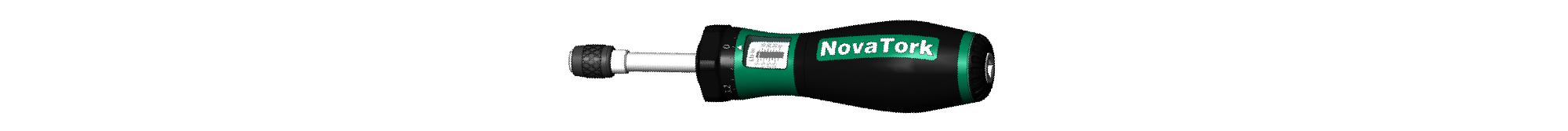

MS Series – Mechanical Torque Screwdriver

MS Series – Mechanical Torque Screwdriver


This is a necessary tool for tightening small screws, bolts and nuts with torque requirements.

●   Accuracy: ±6%, which conforms to the ASME B107.14 standard.

●   Clear scales with fine graduations.

●   1/4" Hexagon socket with a quick-release design, easy for changing various bits.

●   The front hex push-pull mechanism enables torque adjustment and locking,  quick and reliable.

●   When the set value is reached, there will be a "Click" audio alarm.

●   Constructed with oil-resistant, anti-slip engineering plastic for enhanced durability.

●   Features an ergonomic dual-color handle with soft-rigid material combination for secure comfort.

●   The 1/4" female square hole at the end accommodates a T-handle for higher-torque screw tightening (usually for 250 cNm and above).

MS
Mechanical Torque Screwdriver
MS Mechanical Torque Screwdriver

(Metric unit)

Item No.Square DriveTorque RangeIncrementLengthWidthWeight
cN.mcN.mmmmmkg
MSM11001/4"20-1002182380.32
MSM12501/4"50-2505182380.32
MSM13601/4"60-3605182380.32
MSM161/4"1.0-6.0*0.1*182380.32

*Unit is N.m


MS model (English unit)

Item No.Square DriveTorque RangeIncrementLengthWidthWeight
Lb.inLb.inmmmmkg
MS1181/4"3.0-180.3182380.32
MS1361/4"6.0-360.5182380.32
MS1501/4"10-501182380.32
