STM系列 - 大视窗预置式Click扭矩扳手

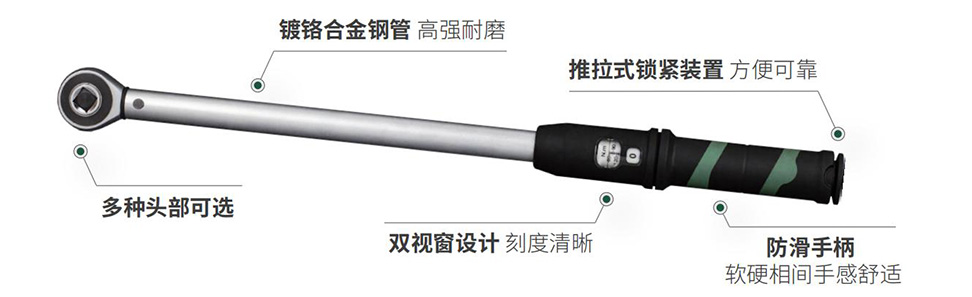

● 精度为读值的±3%（500N.m以上为±4%）
● 清晰的刻度窗，让人一目了然
● 按人体工程学设计的手把，软硬相间，手感更舒适
● 轻便的推拉式锁紧装置，操作极方便，保证了设定值的稳定
● 比一般的扭矩扳手略长，长时间工作更省力
● 合金钢管，经镀铬处理，强度高，更耐用
● 多种头部形式，能满足不同工况的需求：
- STM型为可换向棘轮头：可顺时针和逆时针操作
- STM_CF型：为碳素纤维管的可换向棘轮头款
- STMX型为单向棘轮头：中空方榫上下切换，可满足顺、逆时针操作
- STMH型为方孔头：可选配9×12、14×18、24×32mm的方头插件
- STMR型为圆柱头：可选配Ф16、 Ф22mm的圆孔插件

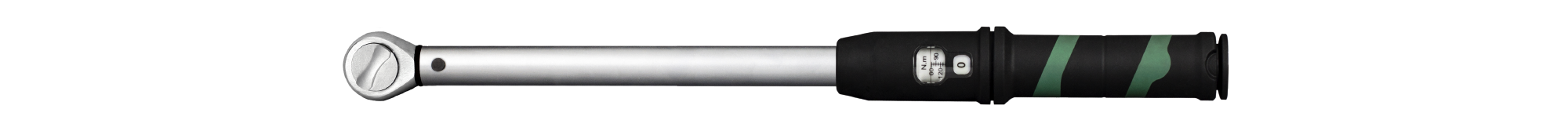

STM
可换向棘轮头大视窗预置式扭矩扳手
可顺、逆时针操作
| 产品编号 | 驱动 方榫 | 范 围 | 分辨率 | 长度 | 宽度 | 重量 | |
| N.m | Lb.ft | N.m | mm | mm | kg | ||
| STM125 | 1/4" | 5-25 | 4-20 | 0.2 | 321 | 30 | 0.82 |
| STM250 | 3/8" | 10-50 | 8-40 | 0.5 | 387 | 38 | 1 |
| STM260 | 3/8" | 10-60 | 9-45 | 0.5 | 387 | 38 | 1 |
| STM2100 | 3/8" | 20-100 | 15-75 | 0.5 | 433 | 38 | 1.1 |
| STM3100 | 1/2" | 20-100 | 15-75 | 0.5 | 433 | 38 | 1.1 |
| STM3150 | 1/2" | 30-150 | 25-115 | 1 | 463 | 40 | 1.2 |
| STM3200 | 1/2" | 40-200 | 30-150 | 1 | 491 | 40 | 1.25 |
| STM3300 | 1/2" | 60-300 | 45-225 | 1.5 | 551 | 40 | 1.4 |
| STM3340 | 1/2" | 60-340 | 50-250 | 2 | 551 | 40 | 1.4 |
| STM3400 | 1/2" | 80-400 | 60-300 | 2 | 700 | 40 | 1.65 |
| STM4550 | 3/4" | 100-550 | 80-405 | 3 | 920 | 57 | 3.1 |
| STM4750 | 3/4" | 150-750 | 110-550 | 5 | 1105 | 60 | 4 |
| STM41000 | 3/4" | 200-1000 | 150-750 | 5 | 1105 | 60 | 4 |
| STM51500 | 1" | 300-1500 | 200-1100 | 10 | 1260 | 72 | 4.5 |

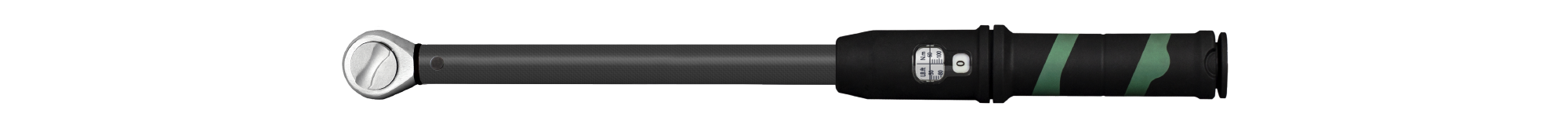

STM_CF
可换向棘轮头（碳素纤维管）大视窗预置式扭矩扳手
可顺、逆时针操作
| 产品编号 | 驱动 方榫 | 范 围 | 分辨率 | 长度 | 宽度 | 重量 | |
| N.m | Lb.ft | N.m | mm | mm | kg | ||
| STM125CF | 1/4" | 5-25 | 4-20 | 0.2 | 321 | 30 | 0.67 |
| STM260CF | 3/8" | 10-60 | 9-45 | 0.5 | 387 | 38 | 0.81 |
| STM2100CF | 3/8" | 20-100 | 15-75 | 0.5 | 433 | 38 | 0.88 |
| STM3100CF | 1/2" | 20-100 | 15-75 | 0.5 | 433 | 38 | 0.88 |
| STM3200CF | 1/2" | 40-200 | 30-150 | 1 | 491 | 40 | 0.99 |
| STM3340CF | 1/2" | 60-340 | 50-250 | 2 | 551 | 40 | 1.1 |
| STM3400CF | 1/2" | 80-400 | 60-300 | 2 | 700 | 40 | 1.35 |
| STM4550CF | 3/4" | 100-550 | 80-405 | 3 | 920 | 57 | 2.36 |

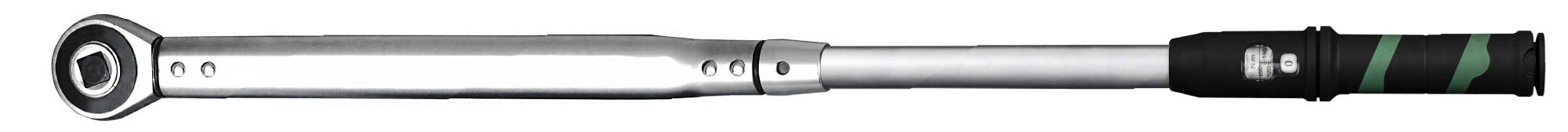

STMX
单向棘轮头大视窗预置式扭矩扳手
中空方榫上下切换，可满足顺/逆时针操作
| 产品编号 | 驱动 方榫 | 范 围 | 分辨率 | 长度 | 宽度 | 重量 | |
| N.m | Lb.ft | N.m | mm | mm | kg | ||
| STMX125 | 1/4" | 5-25 | 4-20 | 0.2 | 328 | 27 | 0.84 |
| STMX250 | 3/8" | 10-50 | 8-40 | 0.5 | 392 | 37 | 1 |
| STMX260 | 3/8" | 10-60 | 9-45 | 0.5 | 392 | 37 | 1 |
| STMX3100 | 1/2" | 20-100 | 15-75 | 0.5 | 434 | 45 | 1.1 |
| STMX3150 | 1/2" | 30-150 | 25-115 | 1 | 504 | 45 | 1.25 |
| STMX3200 | 1/2" | 40-200 | 30-150 | 1 | 504 | 45 | 1.25 |
| STMX3300 | 1/2" | 60-300 | 45-225 | 1.5 | 556 | 45 | 1.4 |
| STMX3400 | 1/2" | 80-400 | 60-300 | 2 | 700 | 50 | 1.97 |
| STMX4550 | 3/4" | 100-550 | 80-405 | 3 | 924 | 70 | 3.67 |
| STMX4750 | 3/4" | 150-750 | 110-550 | 5 | 1076 | 70 | 4.1 |
| STMX4850 | 3/4" | 200-850 | 150-650 | 5 | 1207 | 70 | 4.5 |
| STMX41000 | 3/4" | 200-1000 | 150-750 | 5 | 1207 | 70 | 4.67 |
| STMX51500 | 1" | 300-1500 | 200-1100 | 10 | 1765 | 90 | 6.5 |
| STMX52000 | 1" | 400-2000 | 300-1500 | 10 | 1943 | 90 | 6.8 |

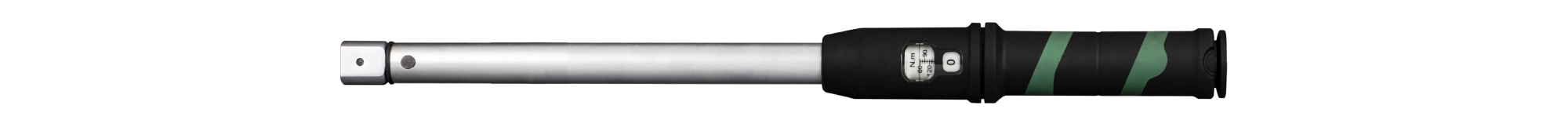

STMH
方孔头大视窗预置式扭矩扳手
可选配相应的方头插件
| 产品编号 | 方孔 | 范 围 | 分辨率 | 长度 | 宽度 | 重量 | |
| mm | N.m | Lb.ft | N.m | mm | mm | kg | |
| STMH925 | 9x12 | 5-25 | 4-20 | 0.2 | 315 | 24 | 0.7 |
| STMH950 | 9x12 | 10-50 | 8-40 | 0.5 | 376 | 24 | 0.82 |
| STMH960 | 9x12 | 10-60 | 9-45 | 0.5 | 376 | 24 | 0.82 |
| STMH9100 | 9x12 | 20-100 | 15-75 | 0.5 | 417 | 24 | 0.9 |
| STMH9150 | 9x12 | 30-150 | 25-115 | 1 | 456 | 24 | 1.1 |
| STMH14150 | 14x18 | 30-150 | 25-115 | 1 | 459.5 | 32 | 1.15 |
| STMH14200 | 14x18 | 40-200 | 30-150 | 1 | 477.5 | 32 | 1.2 |
| STMH14300 | 14x18 | 60-300 | 45-225 | 1.5 | 537.5 | 32 | 1.2 |
| STMH14400 | 14x18 | 80-400 | 60-300 | 2 | 693.5 | 32 | 1.6 |
| STMH14550 | 14x18 | 100-550 | 80-405 | 3 | 868.5 | 32 | 2 |
| STMH24550 | 24x32 | 100-550 | 80-405 | 3 | 919 | 56 | 2 |
| STMH24750 | 24x32 | 150-750 | 110-550 | 5 | 1070 | 56 | 4 |
| STMH24850 | 24x32 | 200-850 | 150-650 | 5 | 1137 | 56 | 4.2 |
STMR
圆柱头大视窗预置式扭矩扳手
可选配相应的圆孔插件
| 产品编号 | 圆柱头 | 范 围 | 分辨率 | 长度 | 宽度 | 重量 | |
| mm | N.m | Lb.ft | N.m | mm | mm | kg | |
| STMR1625 | φ16 | 5-25 | 4-20 | 0.2 | 319 | 43 | 0.78 |
| STMR1650 | φ16 | 10-50 | 8-40 | 0.5 | 378 | 43 | 0.9 |
| STMR1660 | φ16 | 10-60 | 9-45 | 0.5 | 378 | 43 | 0.9 |
| STMR16100 | φ16 | 20-100 | 15-75 | 0.5 | 420 | 43 | 0.99 |
| STMR16150 | φ16 | 30-150 | 25-115 | 1 | 478 | 43 | 1.1 |
| STMR16200 | φ16 | 40-200 | 30-150 | 1 | 478 | 43 | 1.1 |
| STMR16300 | φ16 | 60-300 | 45-225 | 1.5 | 538 | 43 | 1.2 |
| STMR16400 | φ16 | 80-400 | 60-300 | 2 | 700 | 43 | 1.3 |
| STMR22550 | φ22 | 100-550 | 80-405 | 3 | 793 | 43 | 3.27 |
| STMR22750 | φ22 | 150-750 | 110-550 | 5 | 1088 | 43 | 3.85 |
| STMR22850 | φ22 | 200-850 | 150-650 | 5 | 1088 | 43 | 3.85 |
